About Greescreen High Absorption Lite Noise Barrier

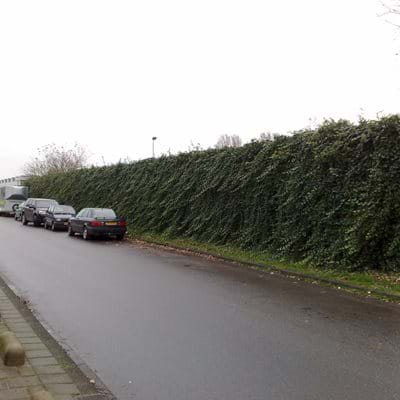

The pleasant aesthetic of the greenscreen noise barriers blends in with any setting. Plants can grow on the durable coconut fibre exterior that covers the noise barriers. The coconut fiber-wrapped tubing offer significant noise insulation and absorption in addition to being perfect for climbing plants of all kinds to adhere to. Within a few years, the greenscreen barriers will be completely covered with plants. The screens are discussed in more detail below and in our brochure.

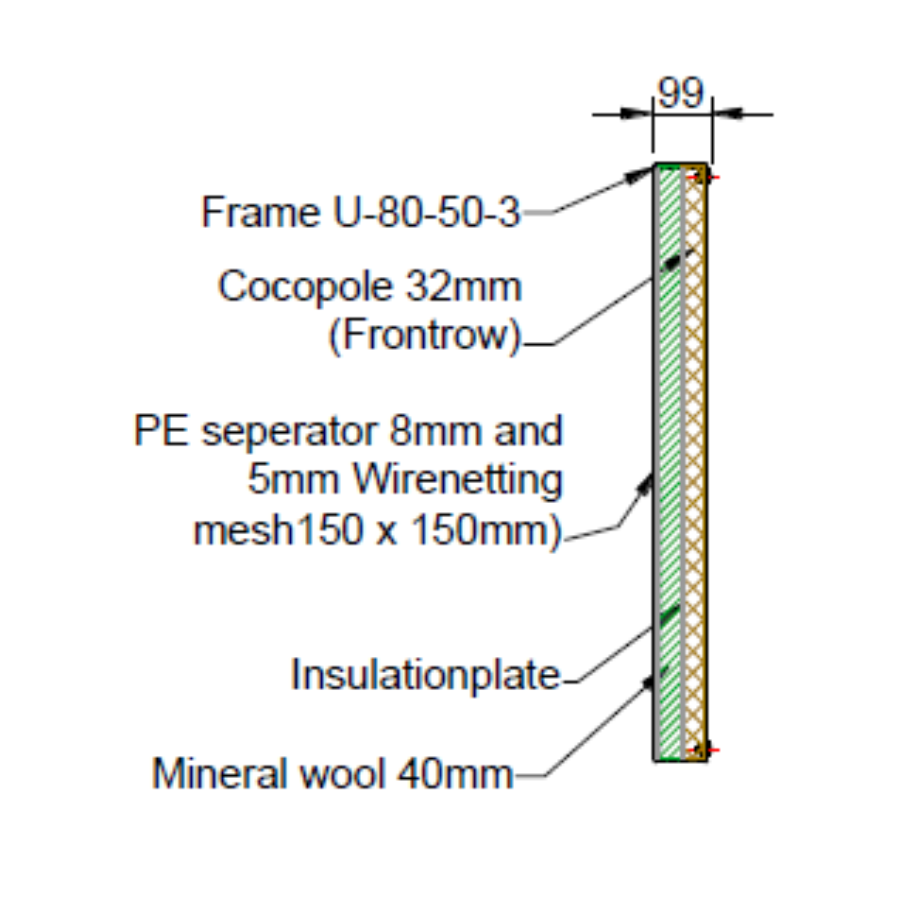

On one side of this specific greenscreen barrier, coir fibre is used to encourage plant growth, and on the other, mineral wool. Additionally, wire netting and PE separator netting are used.

  • Coated steel plate 0,75 mm
  • Mineralwool 40mm
  • HDPE Windsheet and PE Net  (dark green or grey /5mm wire netting 15x15cm)
  • Noisereduction 30dB (cat B3)
  • Noiseabsorption: 11dB (cat A3) α = 0,85 (one side)

This is an industry leading environmentally acceptable single sided noise barrier solution

contact us to discuss your requirements

Fencing Properties

  • High sound insulation and absorption
  • Durable & environmentally-friendly
  • Foundation: galvanized steel IPE or HEA poles
  • Material: version with coconut tube on one side
  • Minimum required construction space: approx. 15-20cm
  • Delivered fully custom-made (width and/or height)
  • Certification: CE and NL Green label A
  • Guarantee: 10 years

Panel Details

  Width Height
Maximum panel height 96cm 80cm
Maximum panel width 146cm 100cm
Panel thickness 196cm 115cm
Maximum width 3.96m
Maximum height   2.5m

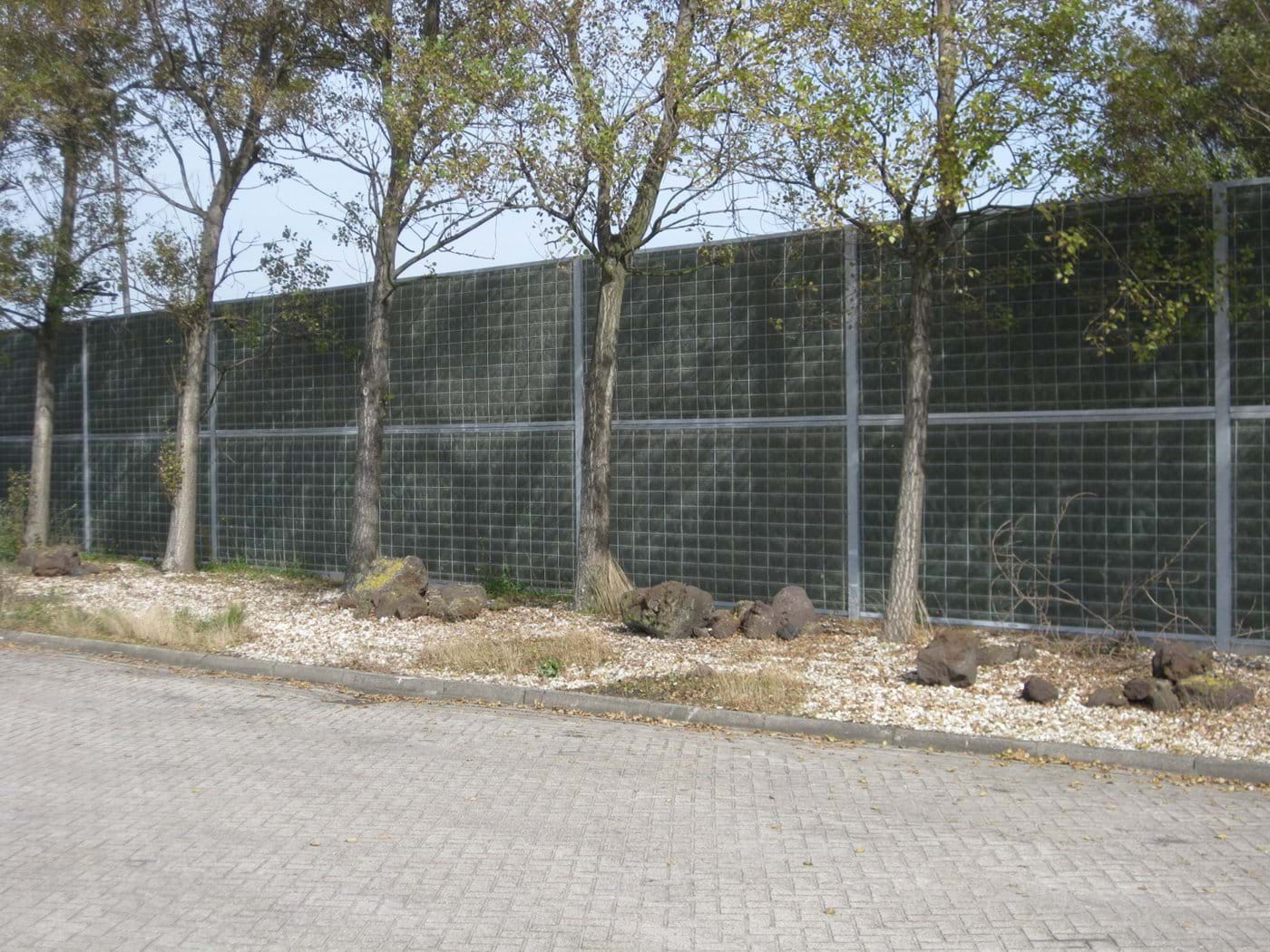

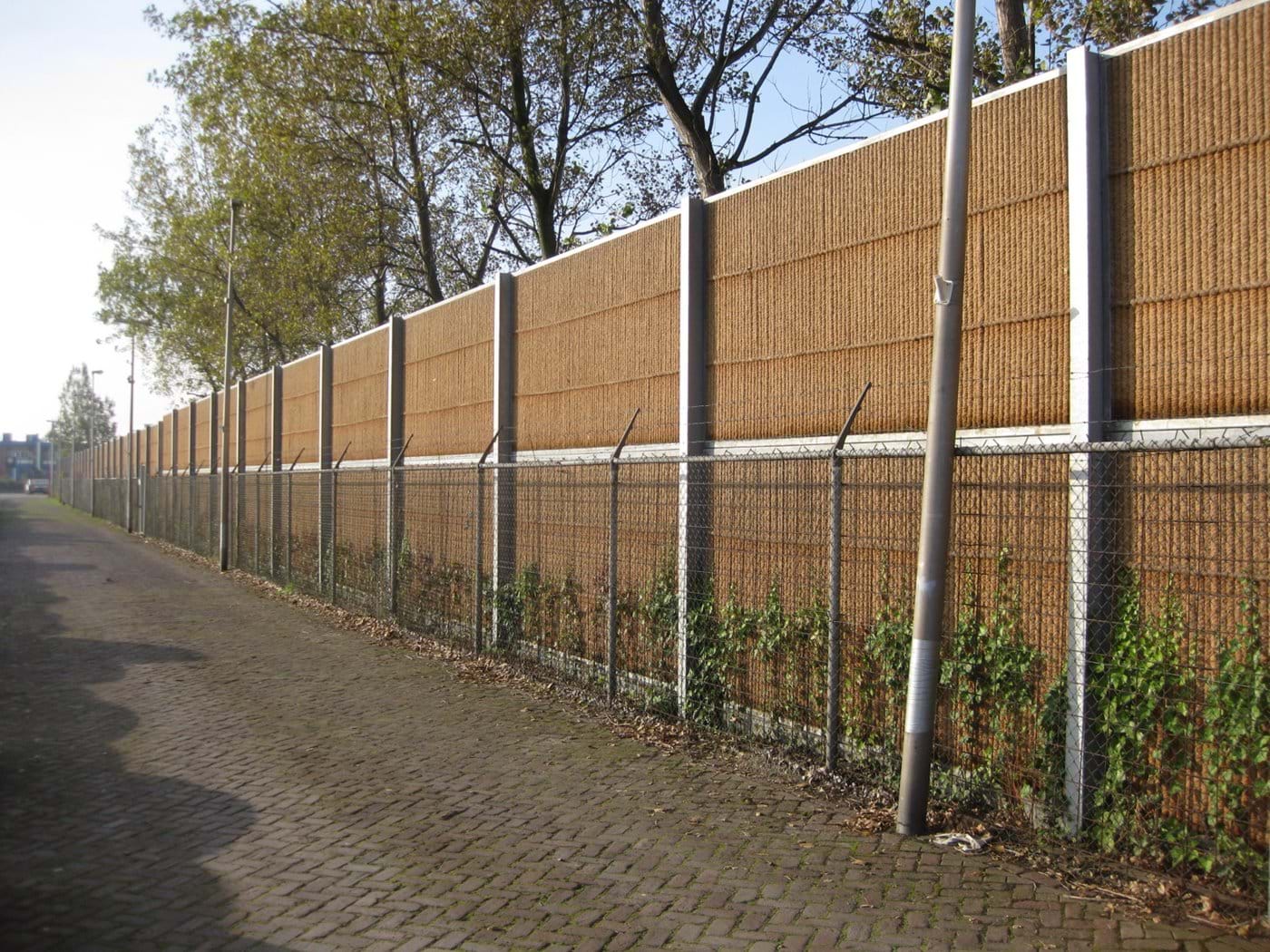

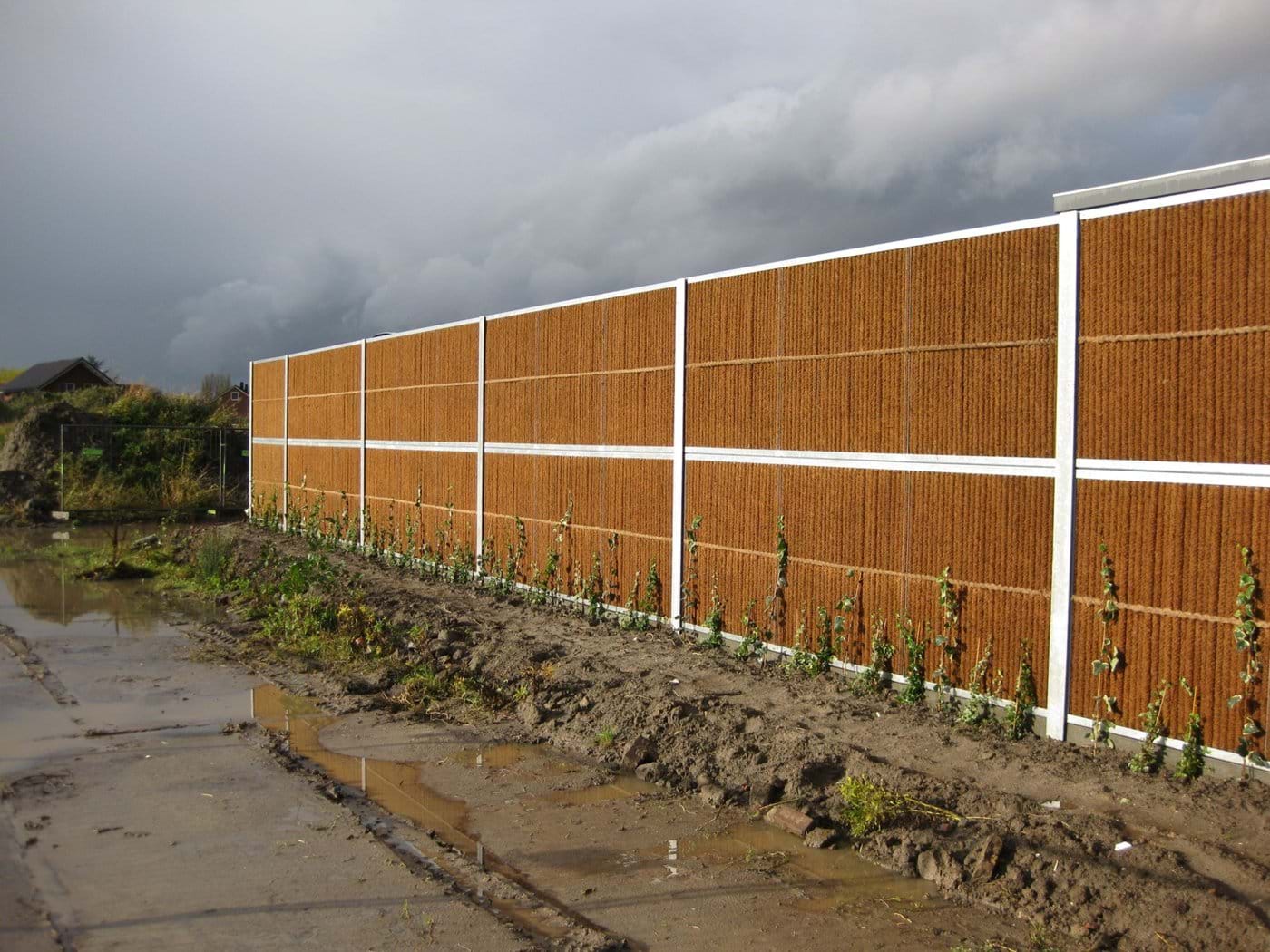

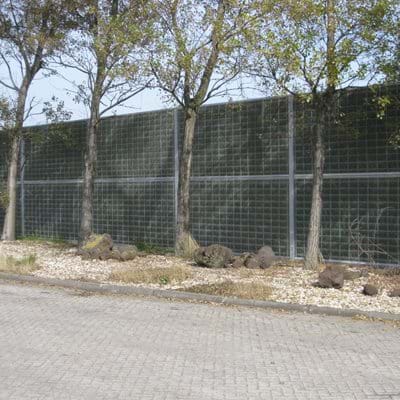

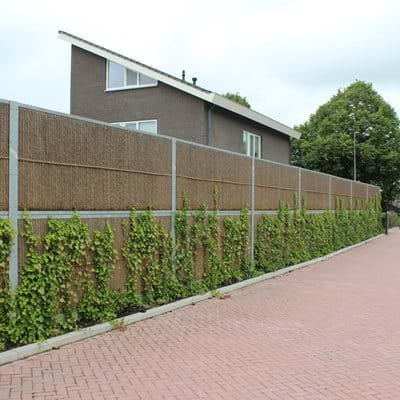

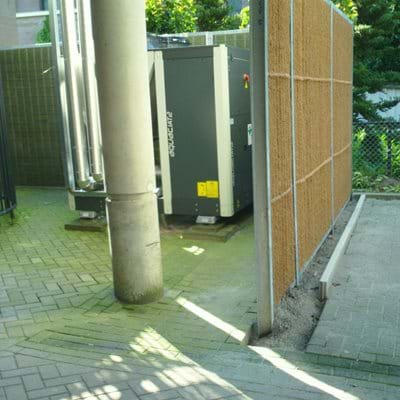

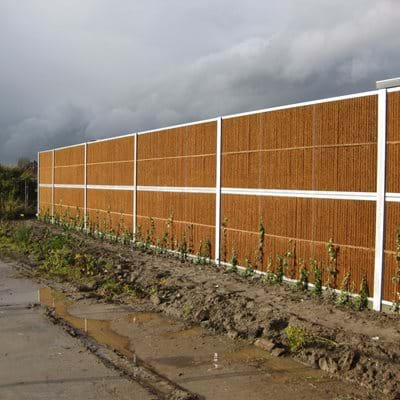

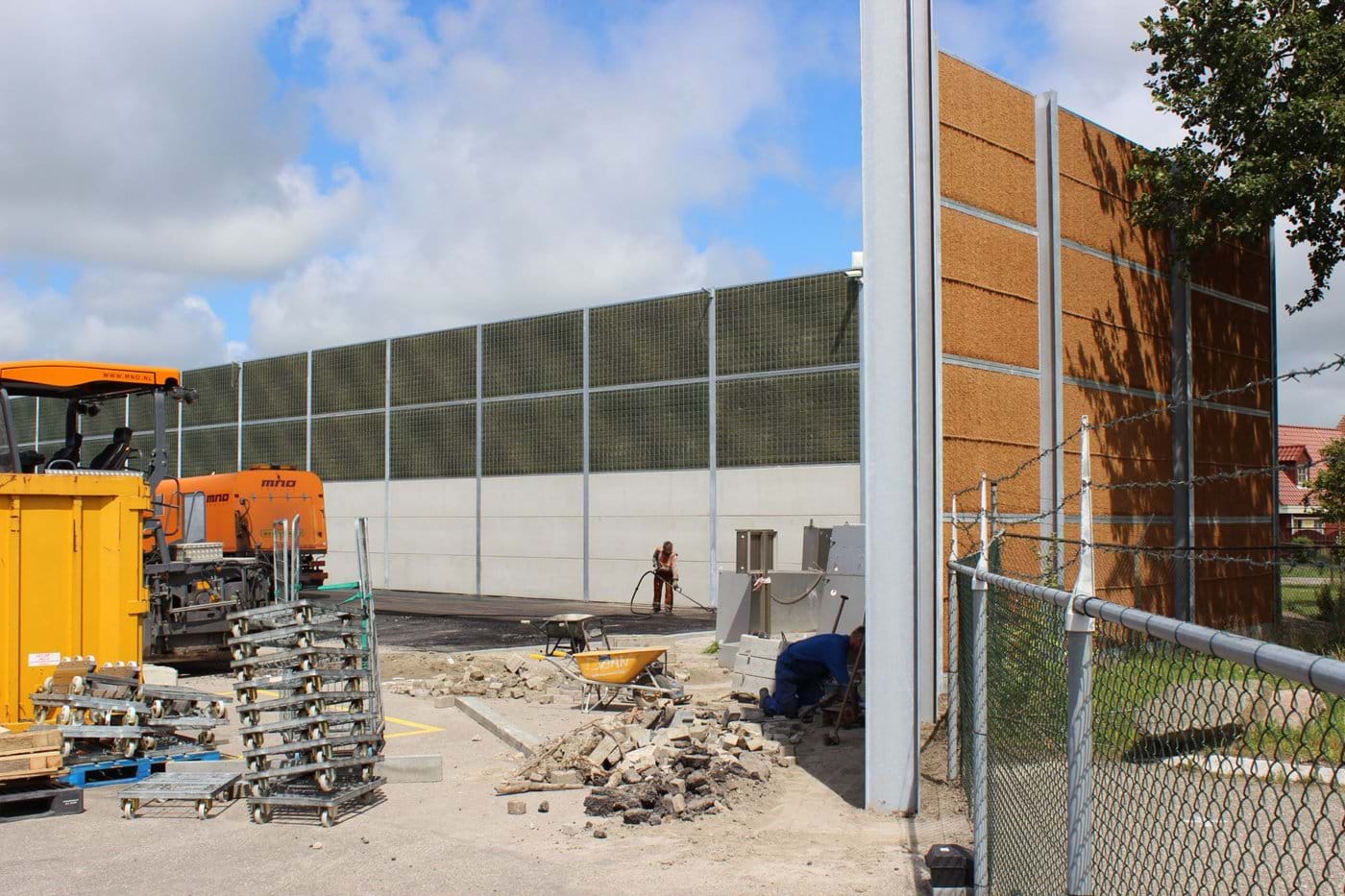

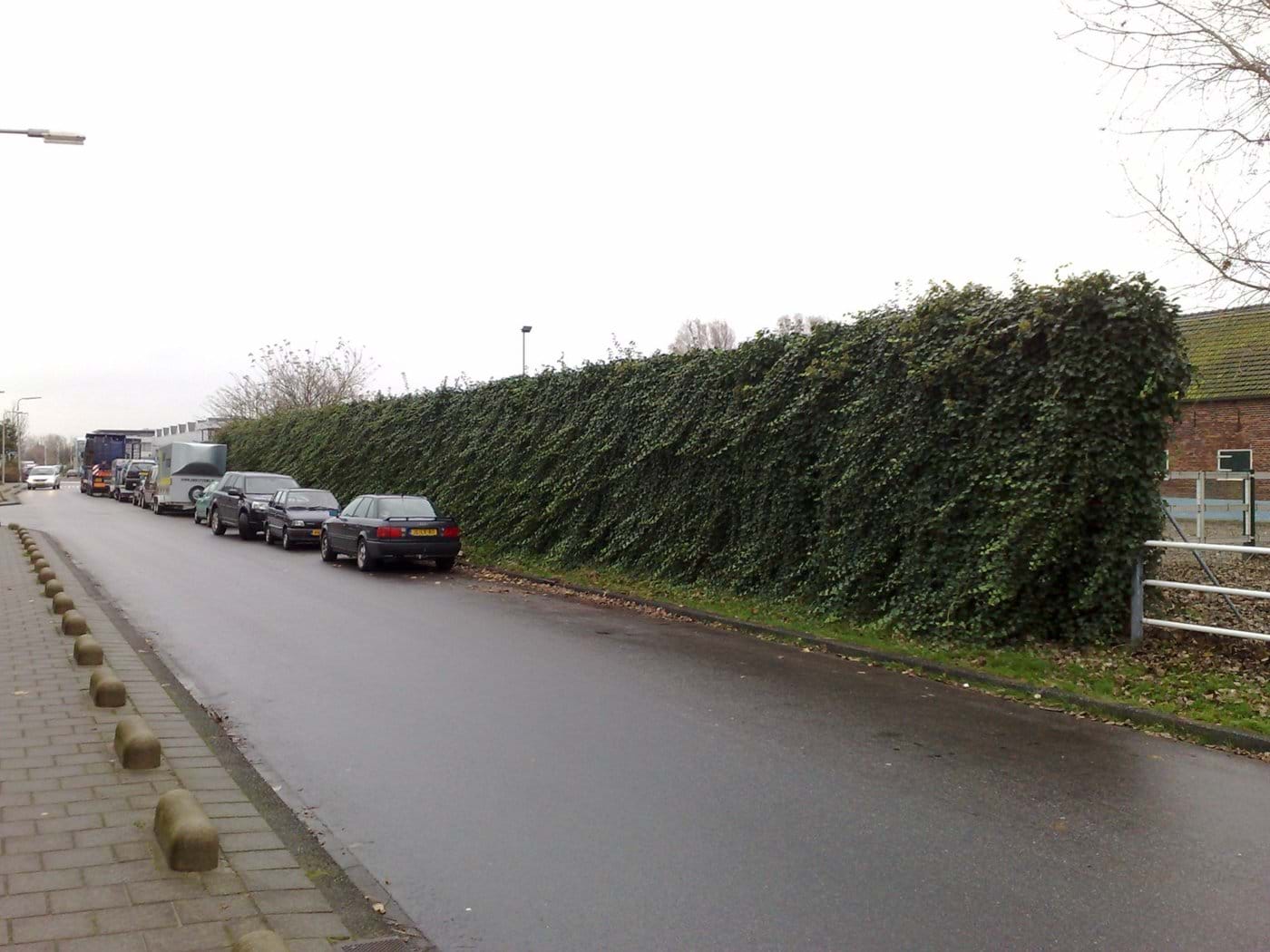

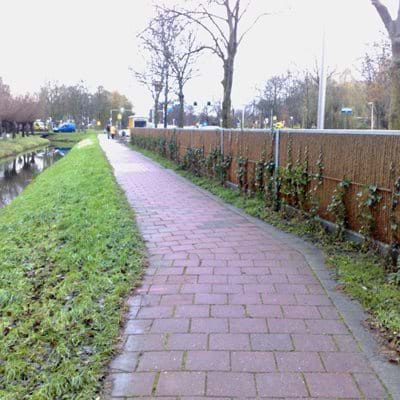

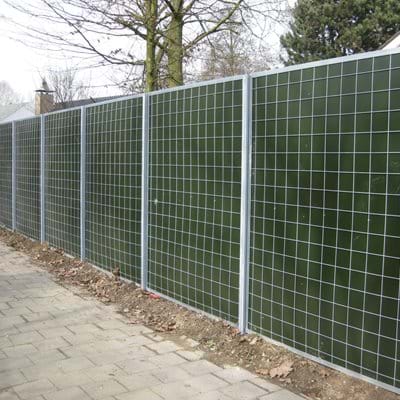

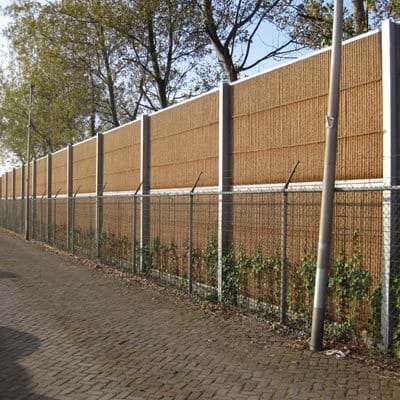

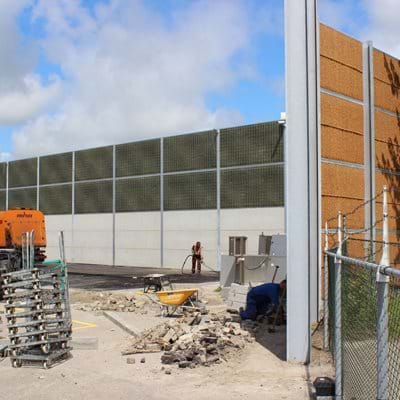

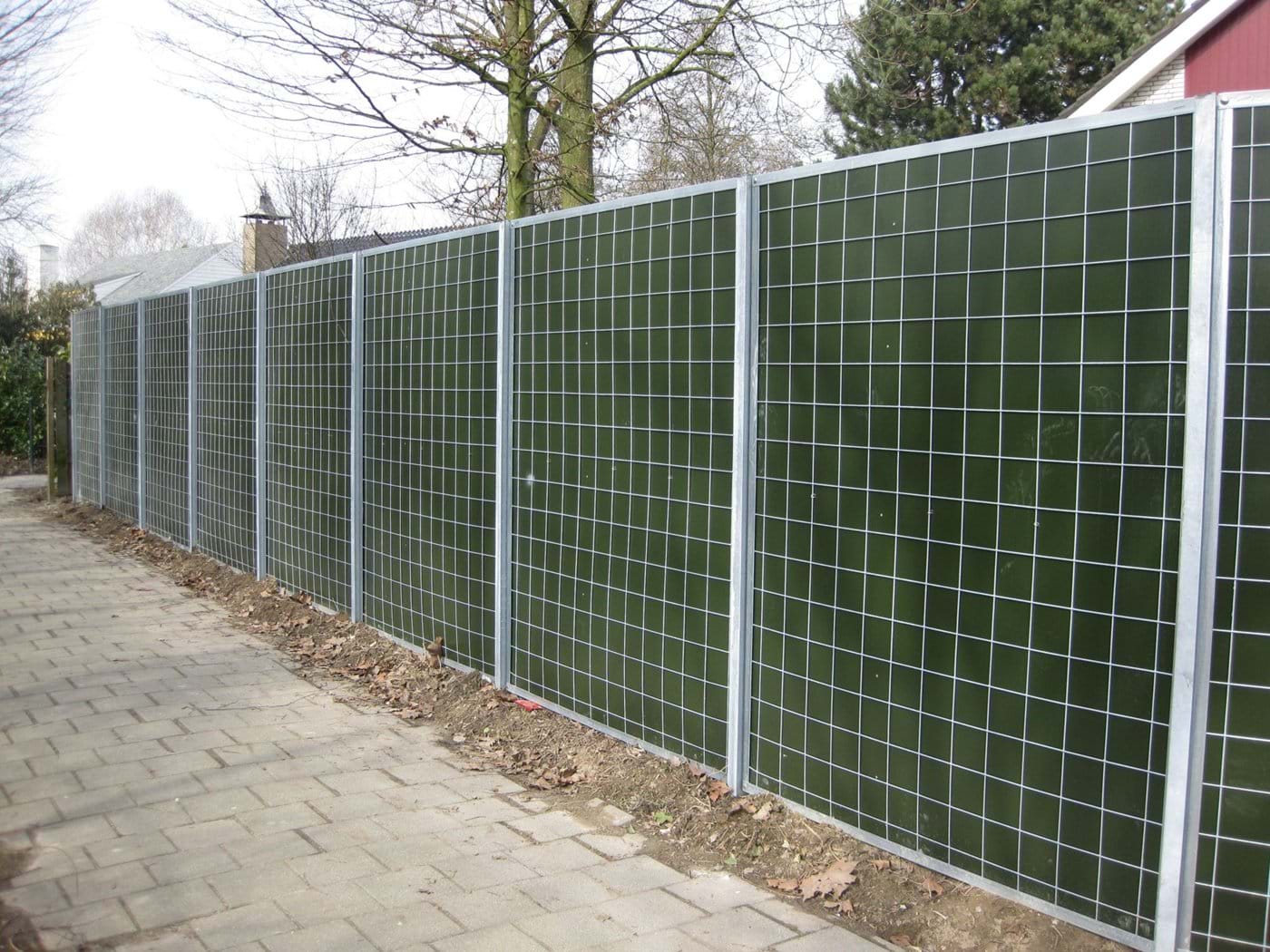

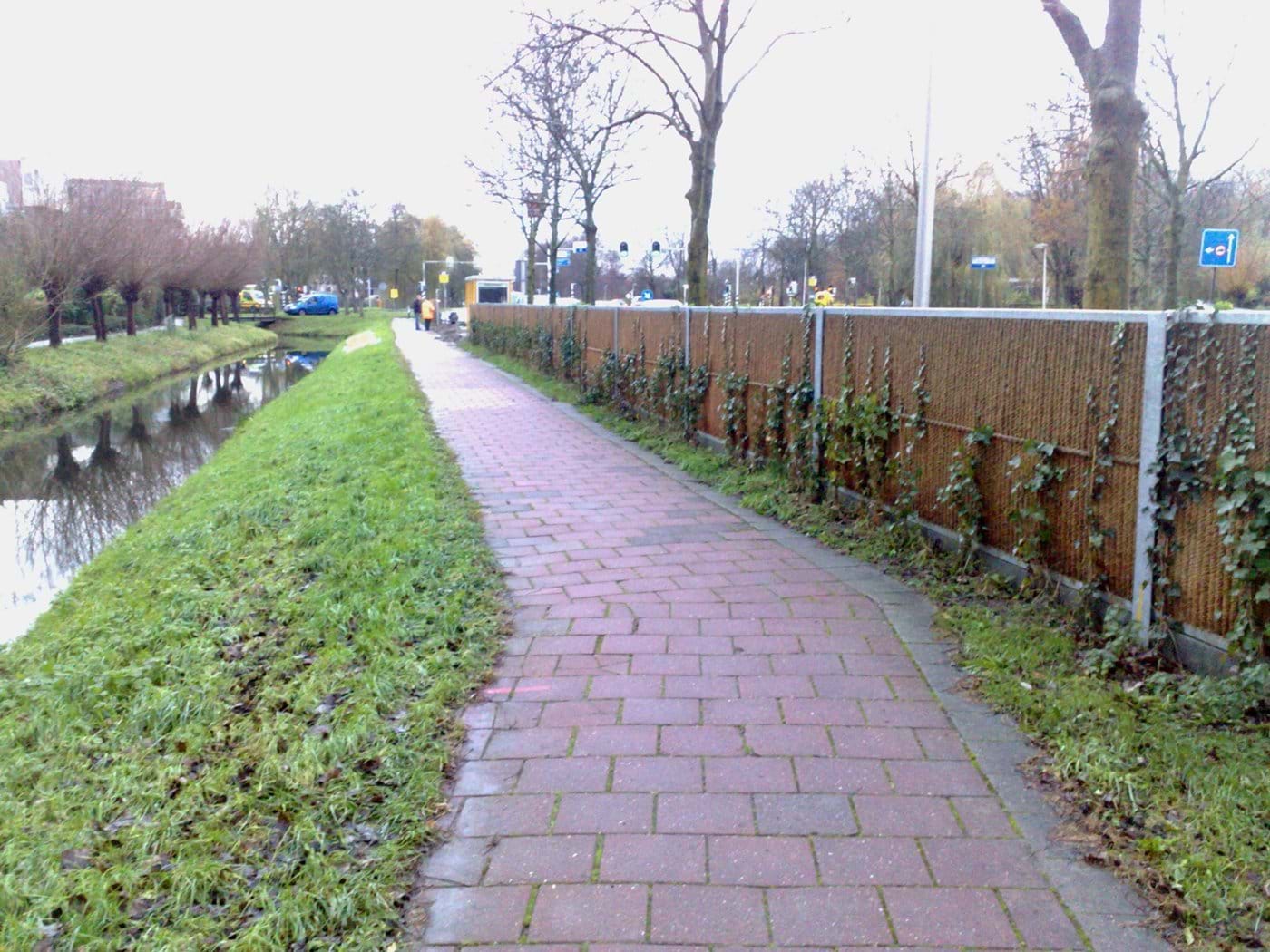

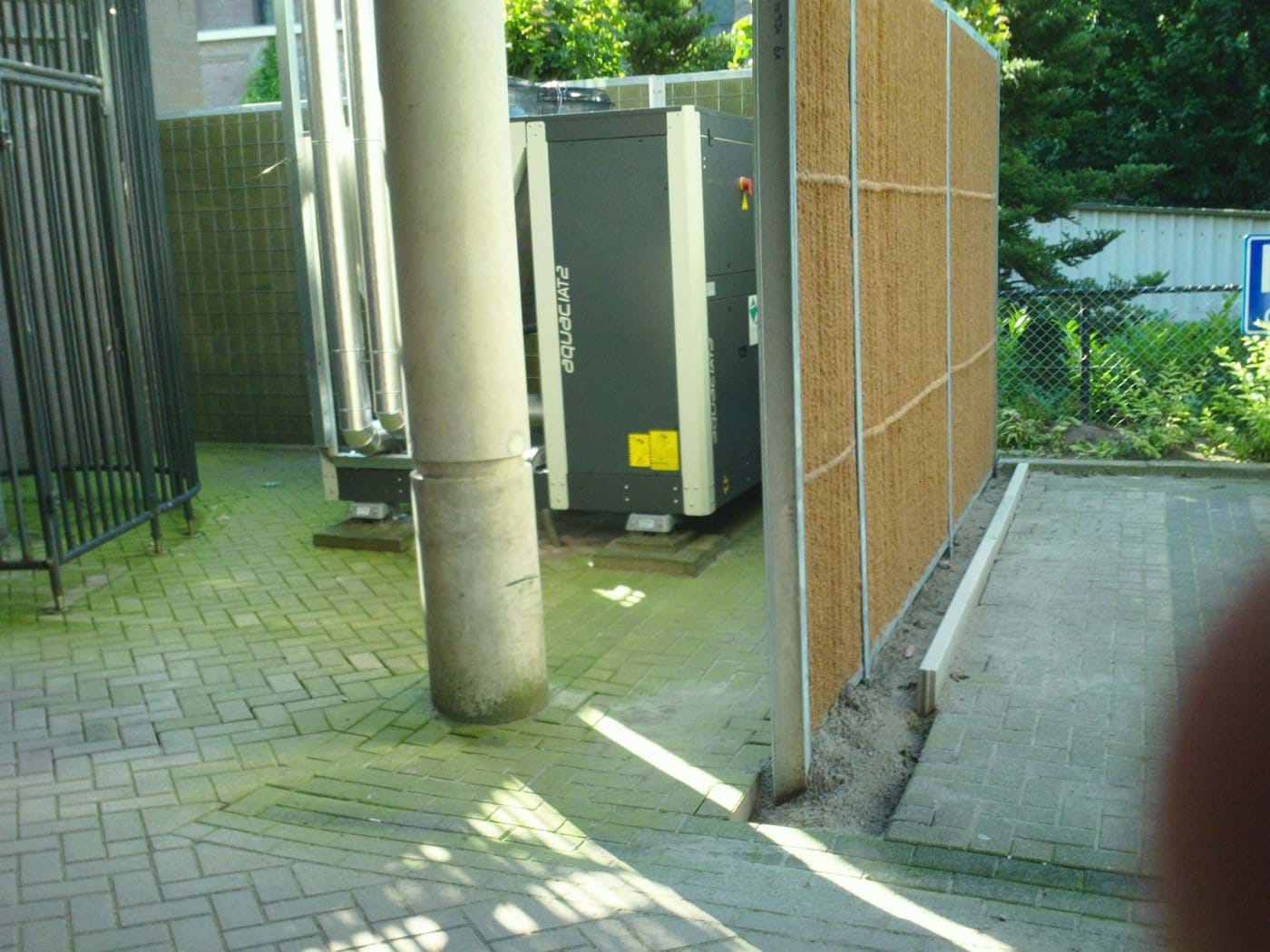

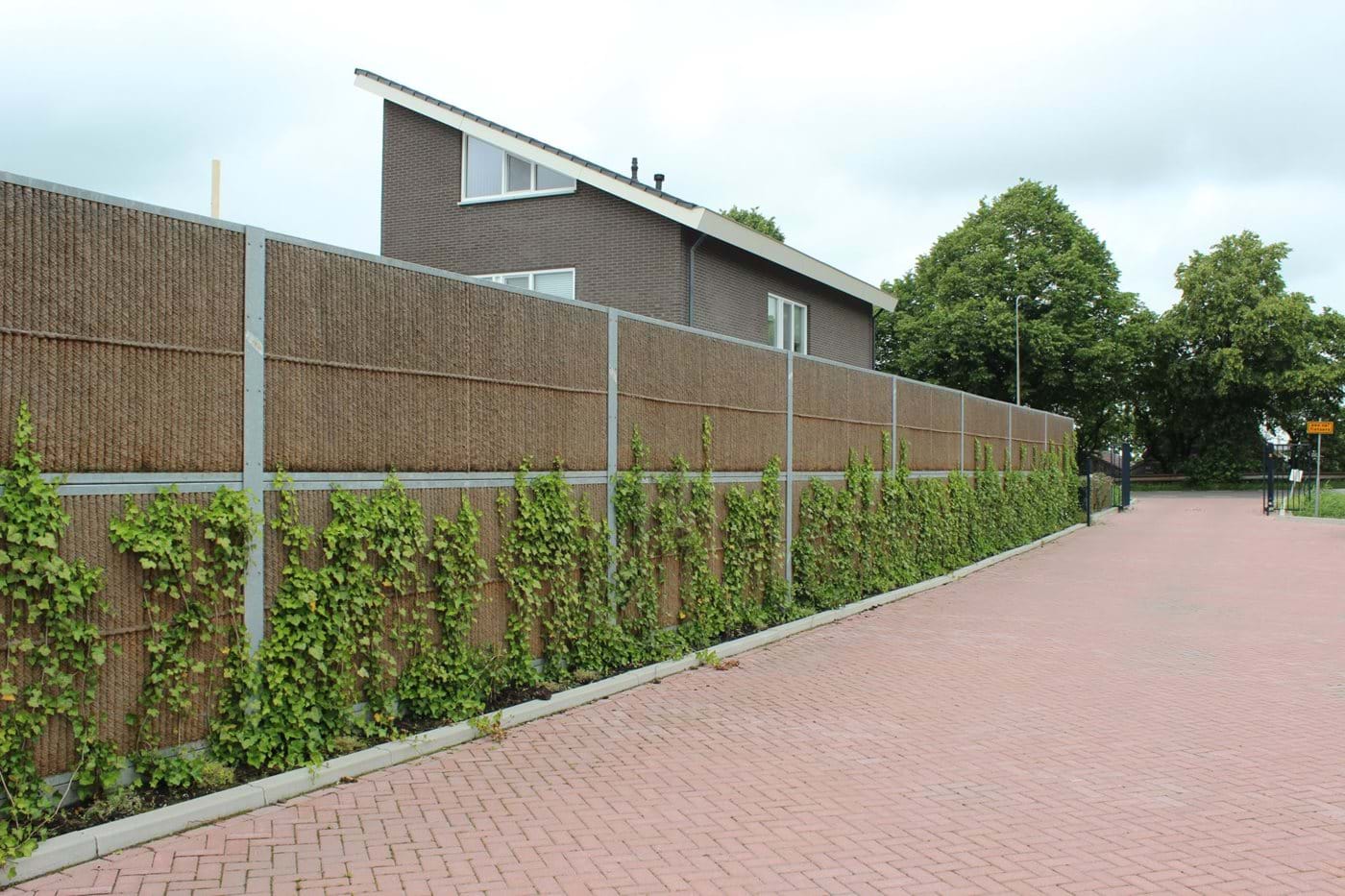

Greenscreen High Absorption Lite Gallery
